Select the Plate Type: Wing 1-piece, Wing 2-piece or In-line (Straight).The minimum reveal table is also shown in the additional images section above.

See the corresponding minimum reveal table for the hinge model. Your choice may be influenced by the reveal between doors on your application.

Note: there can be multiple solutions for the mounting plate height and boring distance combinations.

Select the Plate Height from the Overlay table attached in the additional images.

Select the type of Cabinet: Frameless (sometimes called panel) or Face Frame.

Using the filter on the left side of the page, make the following choices and then click Show:.

Go to the Cabinet Hinges/Hinge Mounting Plates category.

The B (blue row below the table) section gives you the Boring Distance (drilling distance from the edge of the door).Įxample: If your overlay is 16 mm, you need a 0mm Plate Height and a Boring Distance of 5mm. The H - column is the Plate height to use for your application.

Once you determine your overlay, using the metric measurement, check the table below to find the plate height.

FULL OVERLAY CABINET HINGES SOFT CLOSE HOW TO

For assistance, please read our handy article, How to Measure Cabinet Door Overlay.

Measure your cabinet overlay in millimeters.

Make sure you note the manufacturer for your hinge and search for a plate from the same manufacturer.

How to Choose a Blum Hinge Mounting PlateĬhoosing a mounting plate can be challenging even for an experienced cabinet maker! To make the right choice, you need to complete a few steps:

FULL OVERLAY CABINET HINGES SOFT CLOSE PLUS

Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw.

Choose the right mounting plate using our helpful guide below, which we offer as part of our commitment to expert customer support. Blum's BLUMOTION technology ensures any door using this hinge will close quietly and securely.

FULL OVERLAY CABINET HINGES SOFT CLOSE FULL

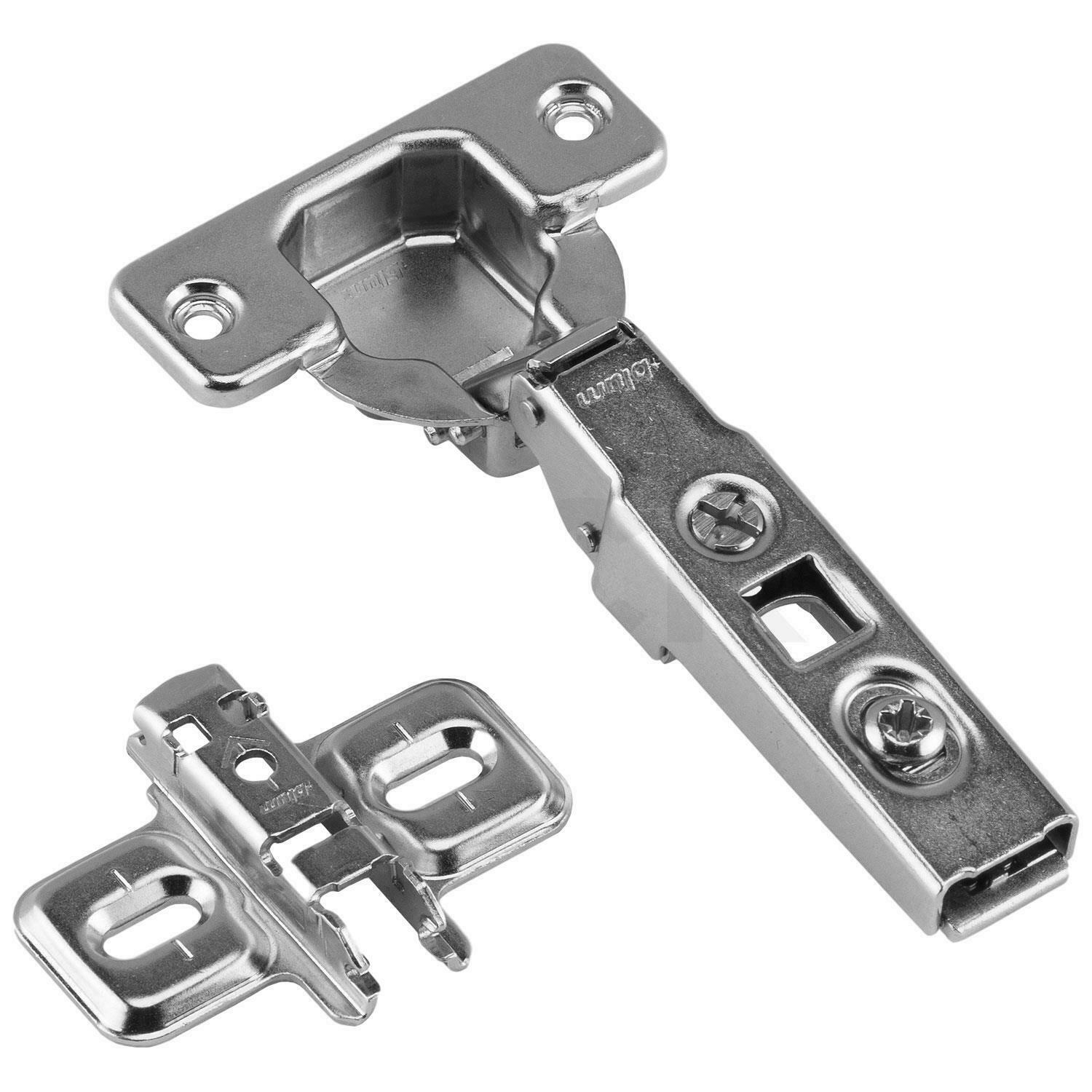

This clip-top concealed hinge is made for full overlay cabinet doors up to one inch thick and can be installed on either a face frame or frameless structure.

FULL OVERLAY CABINET HINGES SOFT CLOSE CODE

When you order 10 or more, you profit from our volume discount, so you can get new cabinet hinges for all your cupboards.Īre you a professional in the kitchen industry, a carpenter, or a furniture builder? With a business account, you enjoy even more advantages, such as a personal discount code and access to a detailed order history.Īre cabinet hinges not quite what you are looking for? Check out our cabinet hardware or browse our selection of furniture fixings to find what you need.European style hinges are the most popular modern cabinet hinge, and Blum 71B3550 110-Degree Soft-Close Hinges will not disappoint. Repeat these steps for every overlay hinge. (Optional) Complete the hinge with a cover plate.Slide the hinge on the mounting plate and secure it.Place the mounting plate of the hinge on the side board of the cupboard and secure it.Place the cup plate of the hinge in the hole and secure it to the cupboard door.Be careful not to drill all the way through the wood. Use the Forstner bit to drill the hole in the door by placing the centre point on the dot.Position the cupboard door straight and flush against the frame and jig.Rotate the hinge jig, so it is horizontal, and place the little pins sticking out of the jig in the holes.Drill 5 mm deep holes with the hardwood drill bit.Mark the positions of the screws in the corners.Place the jig with the flat side on your cupboard.Below you will find a guide to installing kitchen cabinet hinges. Mounting kitchen cabinet hingesįor mounting our cabinet hinges, you will need the following tools: a power drill, a Forstner drill bit 26 or 35 mm (similar to a hinge cutter), a hardwood drill bit 3.5 mm, a PH-2 screwdriver or bit, a pencil, and a drilling jig for hinges. We recommend using self-tapping screws with a 3.5 x 13 mm drill point. You will have to add these to your order yourself. Note: This hinge is suitable for cabinets where the door completely covers the frame. Next to that, this cabinet hinge is equipped with a soft-close system, so your cupboard door will always close softly.

This full overlay hinge is made from galvanised steel and the cup of the hinge has a diameter of 35 mm. Are you planning on building a bathroom or kitchen cabinet? Or is it time to replace your current hinges? This cabinet hinge guarantees the smooth opening and closing of your cupboard doors.
